Diamond Core Drill Bits Set - 25/35/50/65/100mm+25F+SDS Tile Hole Saw Kit for Porcelain Ceramic Tile Granite Marble(7PCS)

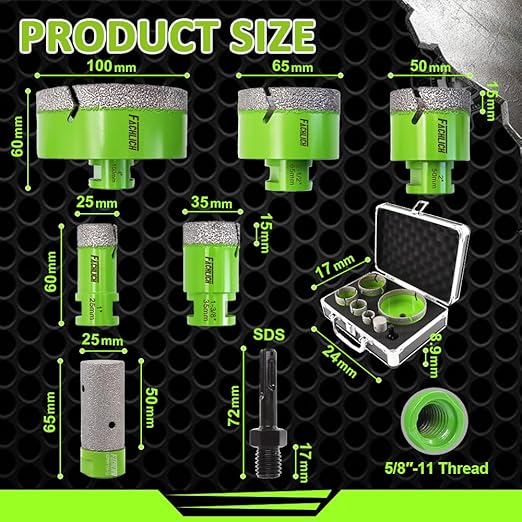

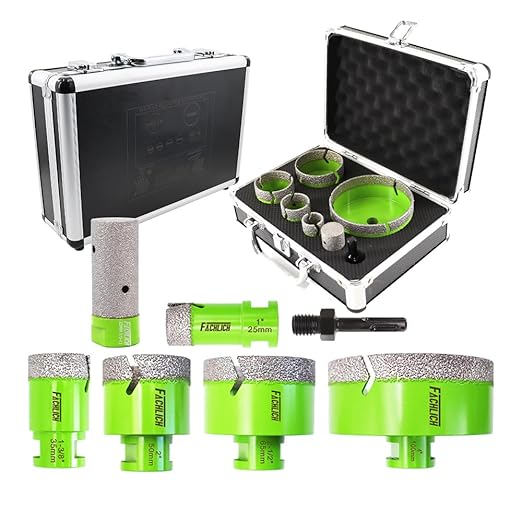

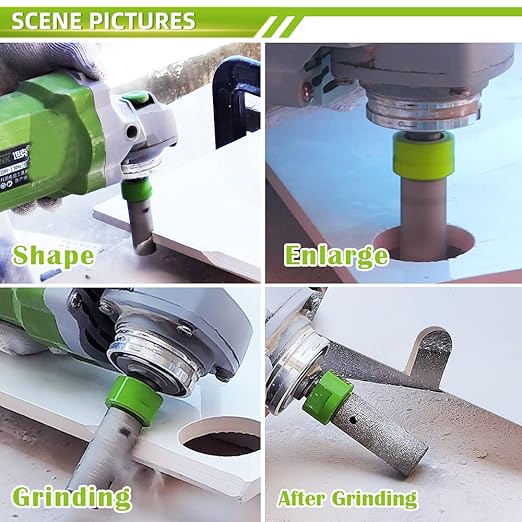

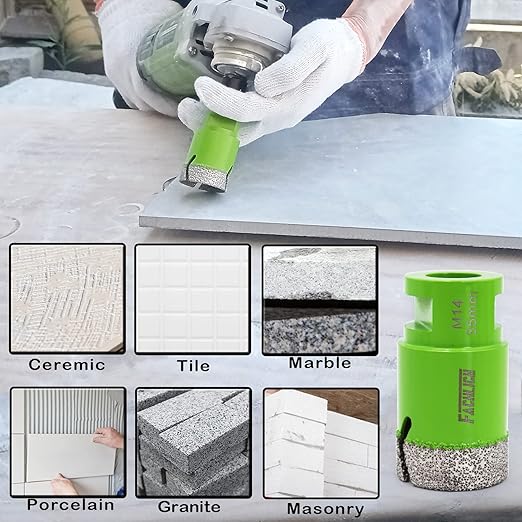

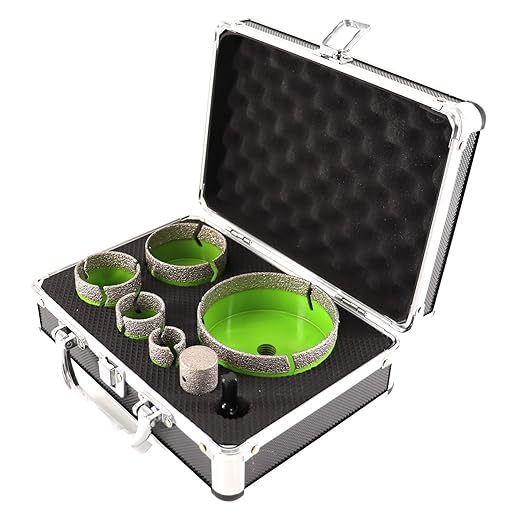

- 【Package Includes】7pcs in total（5/8"-11 thread）,5pcs 1" 1-3/8" 2" 2-1/2" 4"(25/35/50/65/100mm) Diamond drill bits,1pc 25mm Diamond Finger Bit and 1pc 5/8-11 to SDS Shank Adapte. Please see pictures for more details. - 【15mm Diamond Drilling Segment】One of the key reasons why our drills sell well. Compared to other brands of drill bits with 10mm Diamond Drilling Segment, our drill bits have a longer service life and better drilling performance. The design of 4MM wide lightning tooth cutter head is conducive to the discharge of debris. - 【Wide Compatibility】Diamond drill bit set for Wet/Dry Drilling/Shaping/Enlaging/Cutting on various materials,like Porcelain Ceramic Tile Granite Marble Stone; High-quality diamond raw materials, high hardness and compactness, improve the efficiency and wear resistance of hole drilling. - 【Conveniently】Box packaging for easy storage and portability.Reasonable product collocation meets most work demands.The diamond finger bit is desinged to shape, enlarge and round bevel existing holes in Porcelain, Hard Ceramic, Granite and Marble.The Beveling Chamfer Bit is a cost-saving tool because you can create many different hole sizes without buying several different core bits. - 【Machine】Compatible with most angle grinder/driller,use the adapter to switch freely between the two machines. Please do not use impact mode if switching to equipment with impact mode.If you have any problem when you use the product, please feel free to contact us for satisfactory customer service.

Product description

Recommended steps for use

Step 1

Step 2

Step 3

Drilling results

Appreciated Diamond Drill Bits

Lightening Shape Design

Vacuum Brazed Technology

5/8"-11 to 3/8" Hex Adapter

5/8"-11 to SDS Plus Adapter

FACHLICH Diamond Core Drill Bit Set Tile Hole Saw Porcelain Ceramic Granite

FACHLICH Diamond Blade Cutting Tile Concrete Granite Metal Porcelain

FACHLICH Diamond Blade Cutting Tile Concrete Granite Metal Glass Porcelain Wood

Diamond Finger Milling Bit FACHLICH Milling Holes Porcelain Ceramic Tile Marble

Diamond Finger Milling Bit FACHLICH Milling Holes Porcelain Ceramic Tile Marble

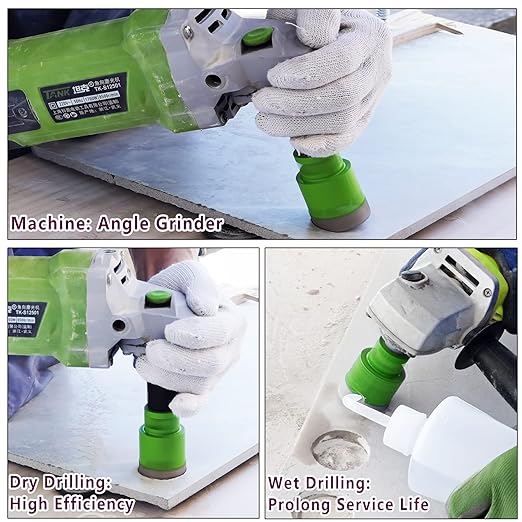

Install the drill bit on the Angle grinder

Place the drill at a 15-45 degree angle. Drill till the hole start to form.

Slowly keep the drill in a 90 degree vertical position. Continue to drill and swaying the machine along a circle.

As shown in the picture

20mm-100mm: fast remove chips, improve drilling efficiency and wear resistance of hole drill.

Less Chipping and heat generation,better finish quality.

Much longer working life, faster and smoother drilling.

High Quality Matrix Steel Body: provides high-strength operation support

Diamond Grade: #35/40

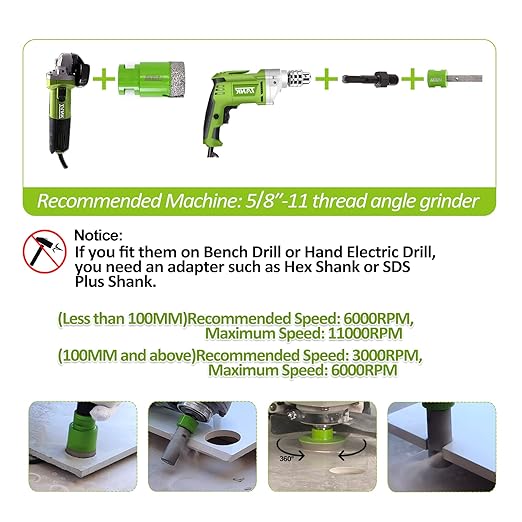

If you want to apply the bit to electric drill, 5/8"-11 to hex shank adapter is needed.

If you want to apply the bit to impact drill, 5/8"-11 to SDS Plus adapter is needed.
